SiForce Beast Sapphire (Formerly 'Lightning NVX')

Write a Review

BEAST SAPPHIRE: $$$

Our server-grade Forensic Workstation featuring Intel's Dual Xeon processors offering more cores and plenty of memory for heavy, multi-threaded processing.



Please contact us or email sales@siliconforensics.com if purchasing two or more workstations.

MPN:
SFSYS-BEAST-SA
  • SiForce Full Tower Workstation Angled Front View
  • SiForce Full Tower Workstation Front View
Contact us for pricing at (909) 632-1797 or sales@siliconforensics.com.

Description

PRICE RANGE: $$$. Our server-grade Forensic Workstation featuring Intel's Dual Xeon processors offering more cores and plenty of memory for heavy, multi-threaded processing.

View AllClose

Additional Information

CPU:

Dual Intel Xeon: from 4510 Silver (2 x 12 cores | 24 threads, up to 4.1 GHz) to 6530 Gold (2 x 32 cores | 64 threads, up to 4 GHz)

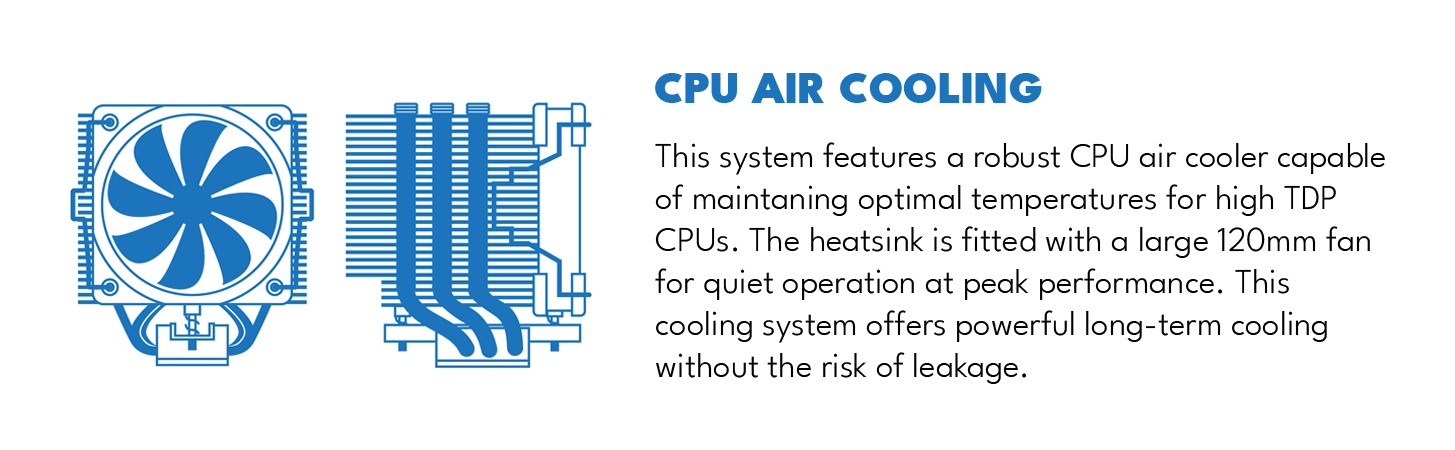

CPU COOLING:

Premium air cooling or Closed loop liquid cooling
MEMORY:

from 128GB to 1024GB DDR5 ECC
OS DRIVE:

from 1TB to 4TB Gen 4 NVMe SSD
TEMP STORAGE:

from 1TB to 4TB Gen 5 NVMe SSD
PROCESSING STORAGE - CASE:

from None to 46.08TB/61.44TB (4 x 15.36TB *RAID 5) Gen 5 Enterprise NVMe SSDs
*any RAID volume included in your workstation can be reconfigured to the RAID type of your preference
PROCESSING STORAGE - EVIDENCE #1:

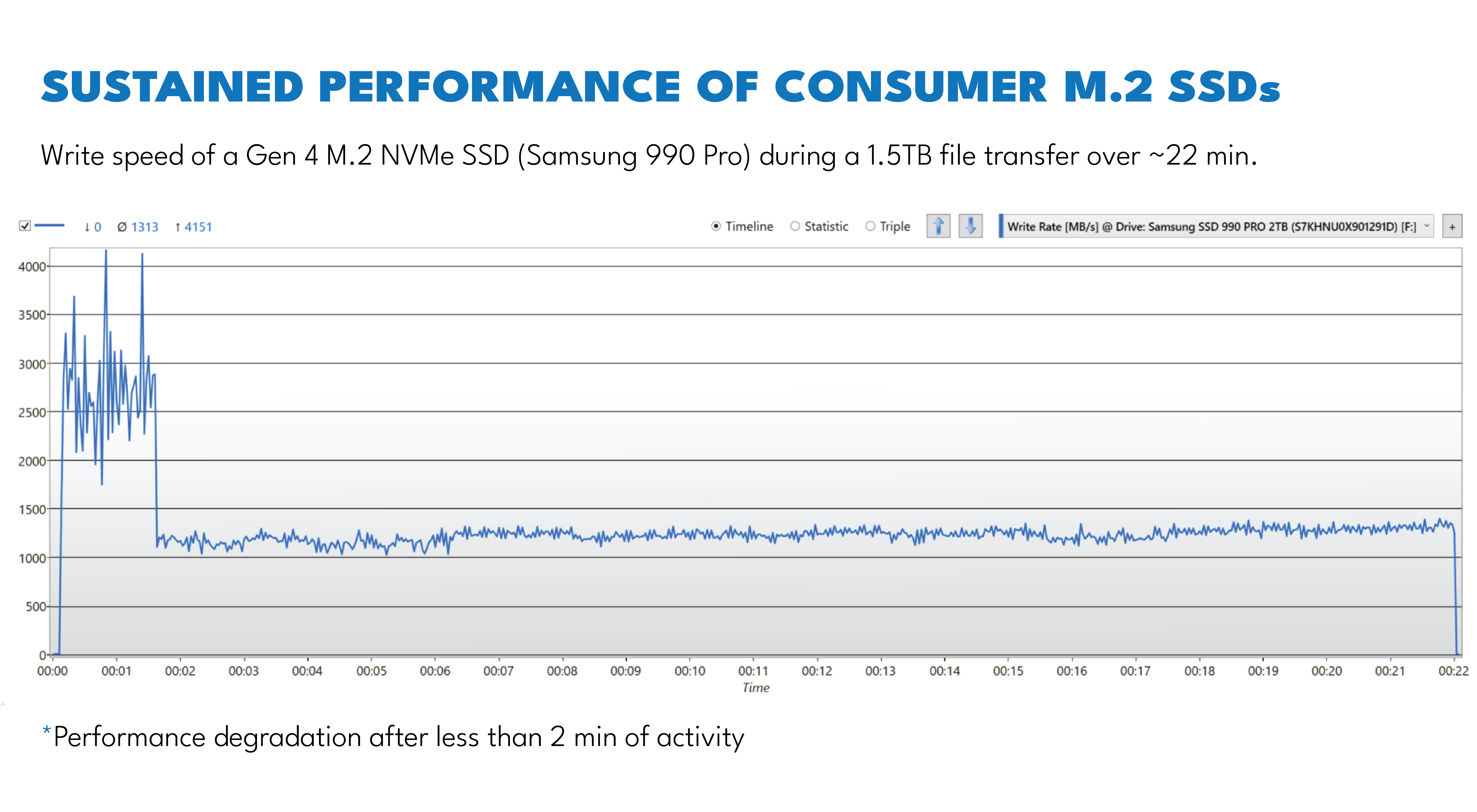

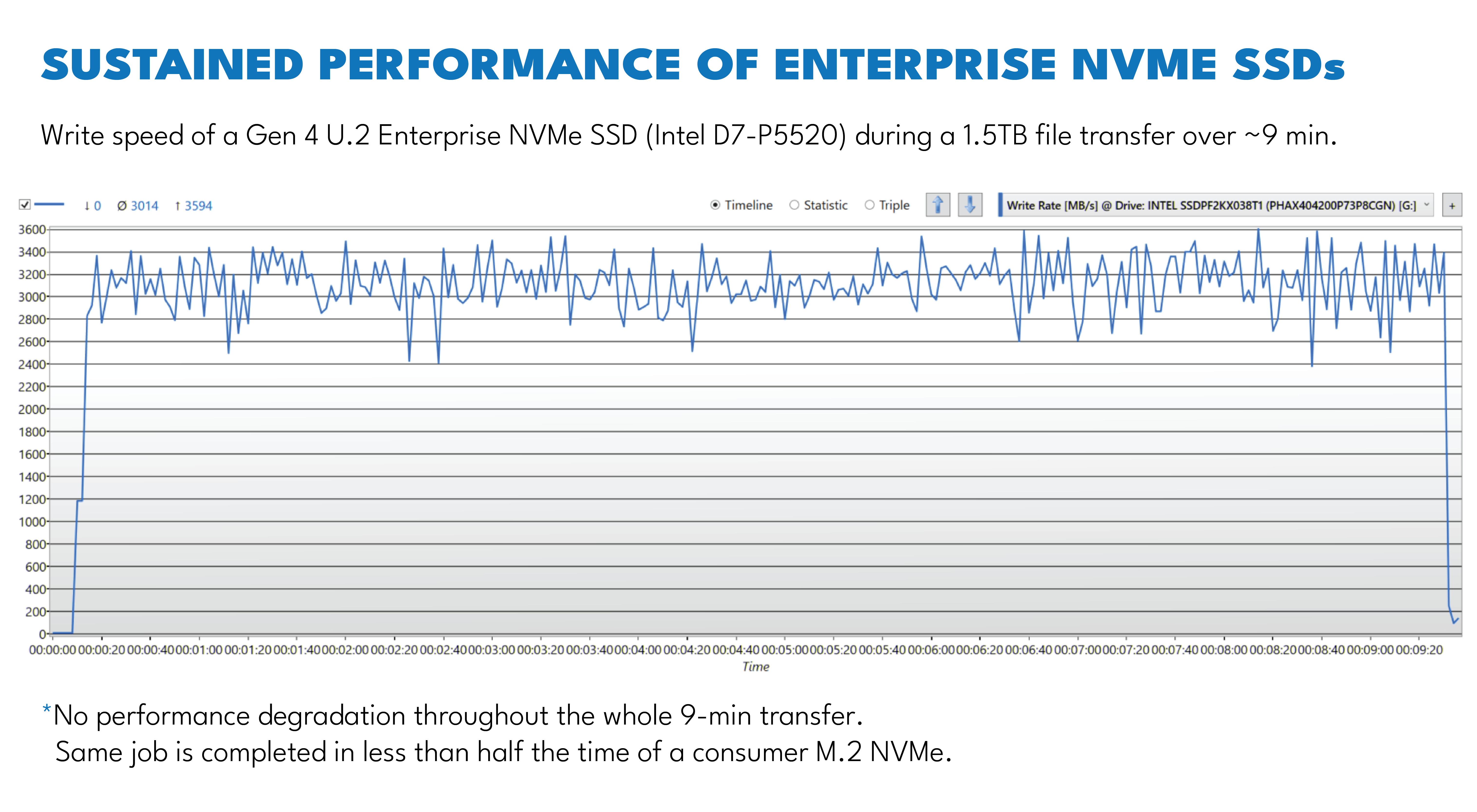

from 2TB Consumer M.2 to 15.36TB Gen 5 Enterprise U.2 NVMe SSD (via front panel hot swap bay)
PROCESSING STORAGE - EVIDENCE #2:

from 2TB Consumer M.2 to 15.36TB Gen 5 Enterprise U.2 NVMe SSD (via front panel hot swap bay)

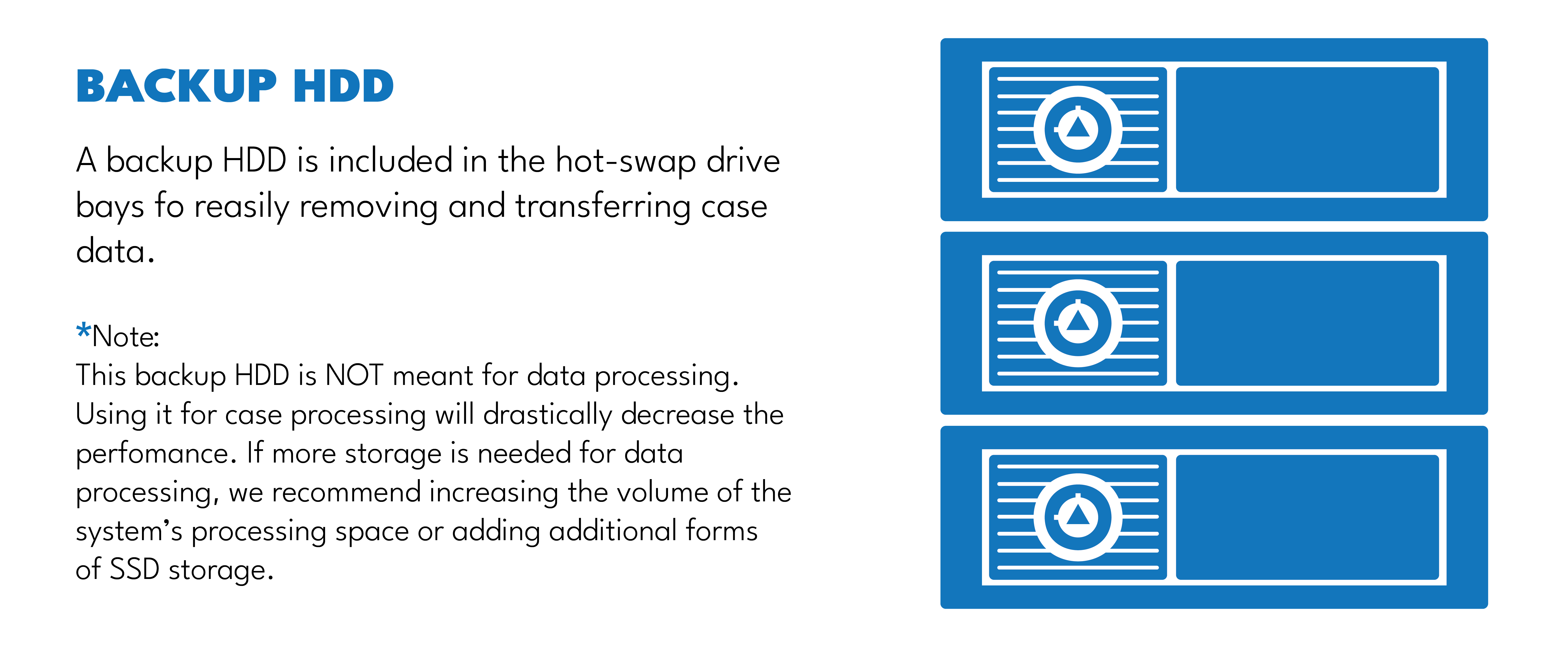

BACKUP STORAGE:

from 8TB to 96TB/120TB (5 x 24TB *RAID 5) 7200RPM Enterprise SATA HDD
*any RAID volume included in your workstation can be reconfigured to the RAID type of your preference
GPU:

from Nvidia GeForce RTX 3050 6GB to Nvidia GeForce RTX 5090 32GB
FRONT CHASSIS I/O PORTS:

(1) USB 3.2 Gen 2 (10Gbps) Type-C
(2) USB 3.2 Gen 1 (5Gbps) Type-A
(2) Audio jacks
*FRONT USB VIA 5.25" BAYS:

(2) USB 3.2 Gen 2 (10Gbps) Type-C (via Front USB Bay)
(3) USB 3.2 Gen 2 (10Gbps) Type-A (via Front USB Bay)
(4) Locked USB 2.0 Type-A (via Dongle Locker)
*Additional front USB available via 'PCIE ADD-ON'
REAR USB:

(4) USB 3.2 Gen 1 (5Gbps) Type-A
REAR I/O PORTS:

(2) *10Gb Ethernet RJ45
(1) VGA
(3) Audio jacks
Additional DP and HDMI® port(s) via GPU
*10GbE SFP+ available via 'PCIE ADD-ON'
WRITEBLOCKER BAY - T356789IU UNIVERSAL BRIDGE:

(1) Read-only SATA/SAS port
(1) Read-only SATA Gen3 port
(1) Read-only PCIe port
(1) Read-only FW800 port
(1) Read-only USB 3.0 port
(1) Read-only IDE port
ADDITIONAL HOT SWAP BAYS:

(2, 4, or 6) U.2 and/or M.2 NVMe hot swap bays (based on 'PROCESSING STORAGE - EVIDENCE' and 'PCIE ADD-ON' selections
(3 to 4) 3.5" SATA hot swap bays
FORM FACTOR:

11-bay full tower
ACCESSORIES:

Tri-mode keyboard and mouse (use wired or wireless)
Compact Media Card Reader USB 3.0
(4) Universal Bridge Kit Cables
Flash drive with Windows OS image
2.5" drive adapter
Power cable
OPERATING SYSTEM:

Windows 11 Pro
WARRANTY:

3 to 5 years SiShield Parts and Labor
